Quick Details

  • Type: Filling Machine
  • Condition: New
  • Application: Beverage, Chemical, Food, carbonated beverage
  • Packaging Type: Case
  • Packaging Material: Wood
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 3phase,according to customer's require
  • Power: 4.4~13KW
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: KINGMACHINE
  • Model Number: KM
  • Dimension(L*W*H): accoding to different Carbonated drinks bottling equipment
  • Weight: 6T
  • Certification: CE SGS ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Material: SUS 304
  • Bottle type: small square bottle,round bottle,flat bottle,cup bottle,glass botte
  • Bottle size: 0.1-2L
  • Suitable bottle: plastic,glass
  • Filling precision: ≤±5mm
  • Name: Soft Beverage Filling Bottling Equipment
  • Capacity: 3000-40000bph
  • suitable bottle diameter: 50-115mm
  • suitable bottle height: 160-320mm

Packaging & Delivery

Packaging Details standard export wooden case suitable for long distance land and sea transportation,Soft Drinks Filling Bottling Equipment / Production Line

   Soft Beverage Filling Bottling Equipment / Production Line

carbonated dirnks filling equipment, bottling equipment, Soft Drinks Filling Bottling Equipment

Company Information






pruduct description



Products Introduction of Soft Beverage  Filling Bottling Equipment  :

1.The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.

2.Besides using photo-electronic detectors to detect the running of every important sub-process, it employs PLC from OMRON for automatic control of the whole process and new type air-channel for bottle-loading featuring speediness and damage-free of bottle. The handing-over of bottles between two linking structures is fulfilled by applying clamping-bottle-neck method. For bottle of different shape only a few parts need to be changed and the substituting is simple, which shows the machine is of good adaptability.

High automation and easy operation make it an ideal option for beverage companies.

Characteristics of Soft Beverage  Filling Bottling Equipment   :
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.



Technical parameters



Model

DCGF18-18-6

DCGF24-24-8

DCGF32-32-10

DCGF40-40-12

DCGF50-50-15

DCGF60-60-15

Capacity

3000-5000

5000-7000

7000-10000

10000-15000

16000-20000

20000-24000

Filling precision

+5mm(Liquid Level)

Filling pressure

0.4MPa

PET bottle specification

Bottle diameter: 50-100mm; height: 150-310mm

Suitable cap shape

Plastic screw cap

Total power

(KW)

5.2

6.2

6.2

7.5

11

15

Weight (KG)

3500

4500

6000

7200

10000

11500

Overall dimensions(mm)

2600x1965x2250

2980x2200x2250

3880x2200x2250

4000x2250x2500

5500x3500x2500

6500x5500x2550





Main components: (See Drawing 1)

1)  driving system;

2)  bottle-loading system;

3)  bottle-rinsing system;

4)  handing-over system between rinsing and filling;

5)  filling system;

6)  handing-over system between filling and capping;

7)  capping system;

8)  cap-unscrambling system;

9)  bottle-unloading system;

10)  frame;

11)  electrical system.

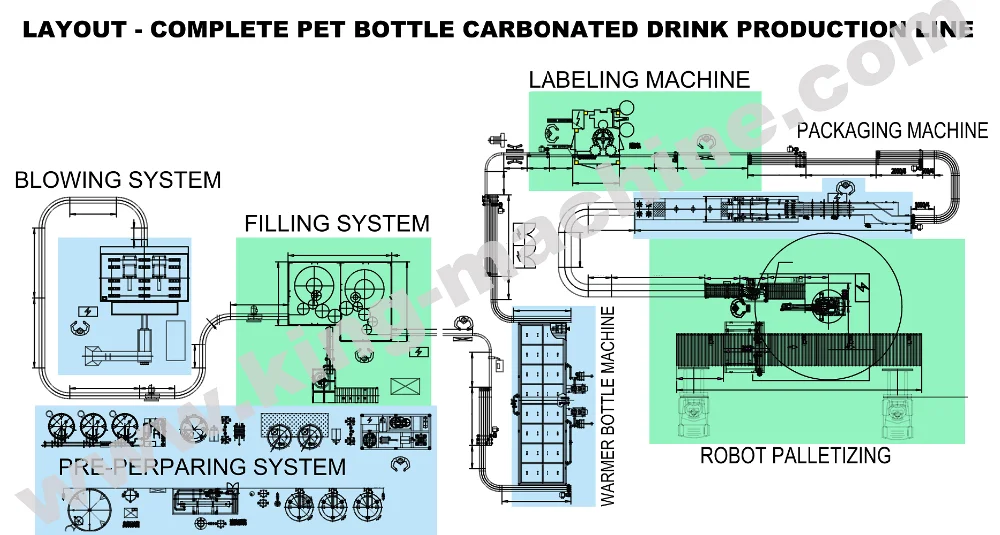

Drawing 1:

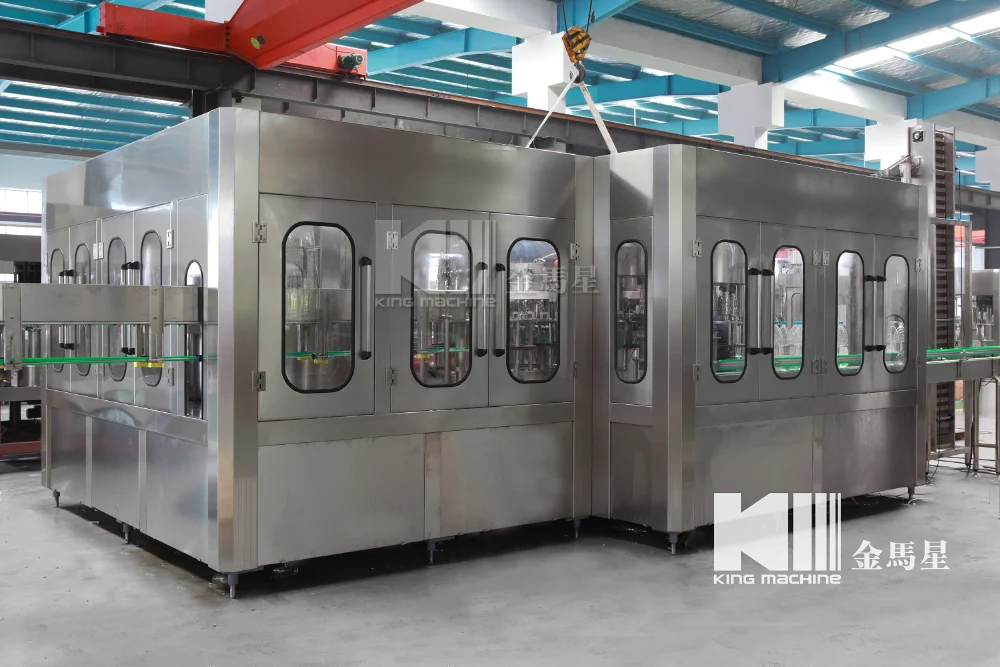

 Photoes of Soft Beverage  Filling Bottling Equipment   :





Rinsing heads

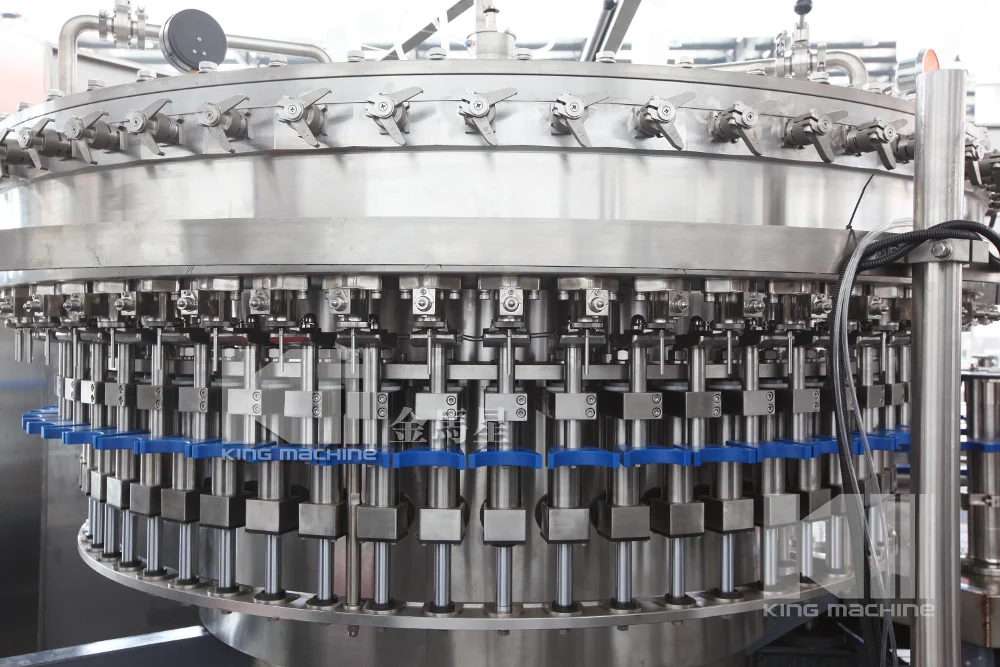

Filling heads and Capping heads



 Main Parts Components of Carbonated Drinks Filling Bottling Equipment:





Packaging & Shipping





Our Services

 1.installation, debug

After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debug and test production at the same time make the equipments reach the rated producing capacity of the line. Time for installation and debug is 15-25 days.

2.training

Our company offer technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3.Quality guarantee

We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.

4.After sales

1,After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.

2,After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
