Automatic CSD Filling Machinery (DCGF18-18-6)

FOB Reference Price:Get Latest Price
US $8,000-32,000 / Set | 1 Set/Sets CSD Filling Machinery (Min. Order)
Supply Ability:
10 Set/Sets per Week CSD Filling Machinery
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Beverage, Chemical, Food
Packaging Type:
Barrel, Bottles, Cans
Packaging Material:
Glass, Metal, Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
can be made according to customer's requests
Power:
3KW
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
KING MACHINE
Model Number:
KM(DCGF 18-18-6)
Dimension(L*W*H):
2800*2150*2300mm
Weight:
4500KGS
Certification:
CE,ISO,SGS
After-sales Service Provided:
Engineers available to service machinery overseas
Keywords:
CSD Filling Machinery
Rinsing Pump power:
0.37KW
Filling Pump power:
0.75KW
Cap unscrambler motor:
0.37KW
Capacity:
4000-5000bph for 500ml CSD Beverage Filling Machinery
Suitable bottle size:
250ml-1500ml
Suitable bottle diameter:
50-90mm
Suitable bottle height:
150-310mm
Total Power:
4.49KW
Product name:
CSD Filling Machinery
Packaging & Delivery
Packaging Details
Standard Export Package for CSD Filling Machinery
Delivery Time
within 25 days
Product Description

The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.

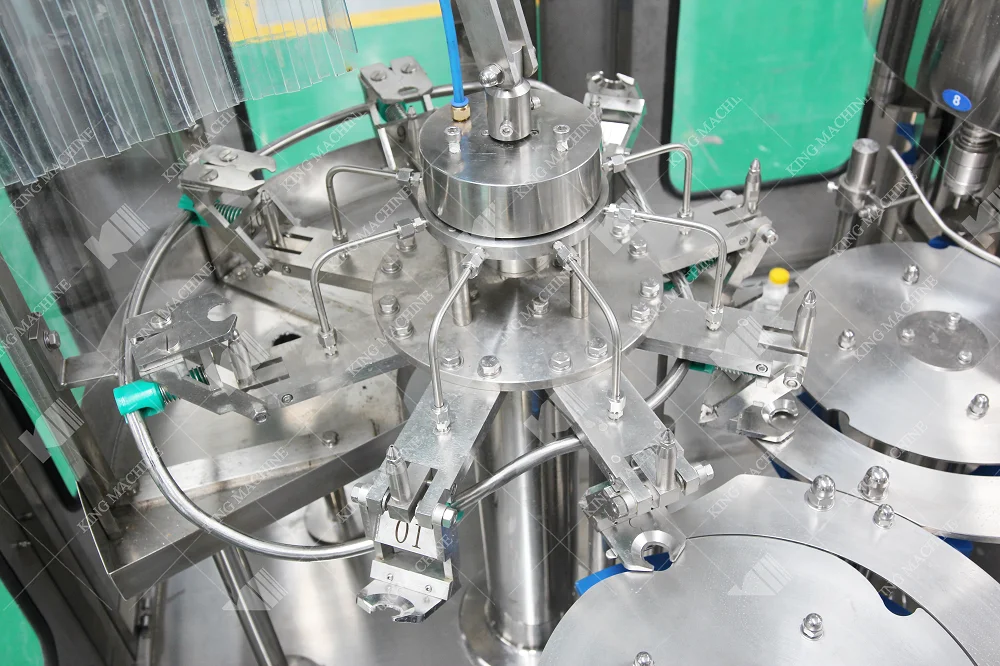

Washing heads.

<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump

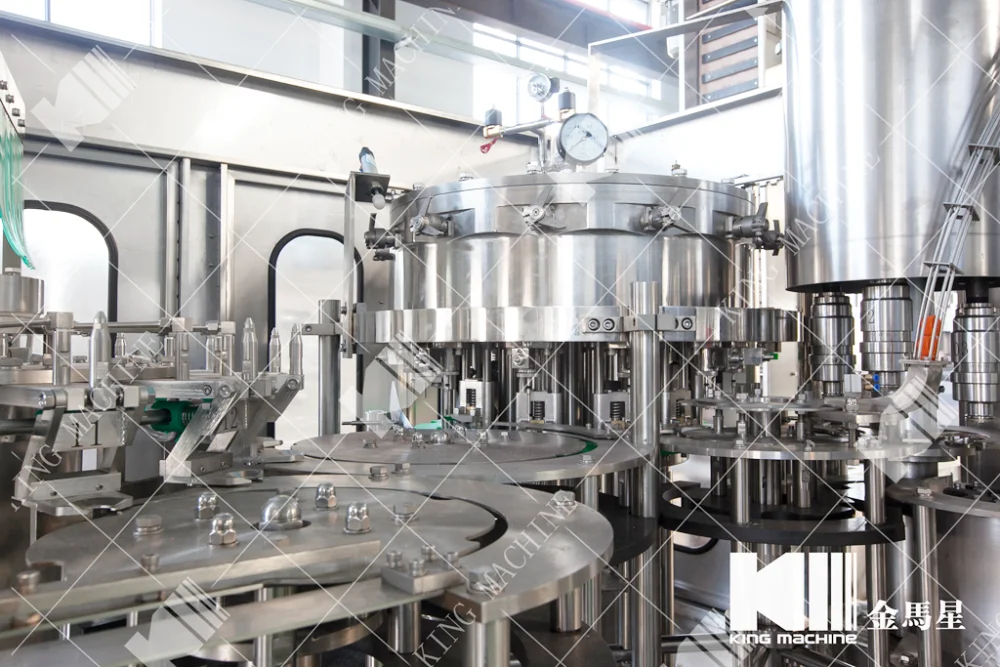

Filling heads.

<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump

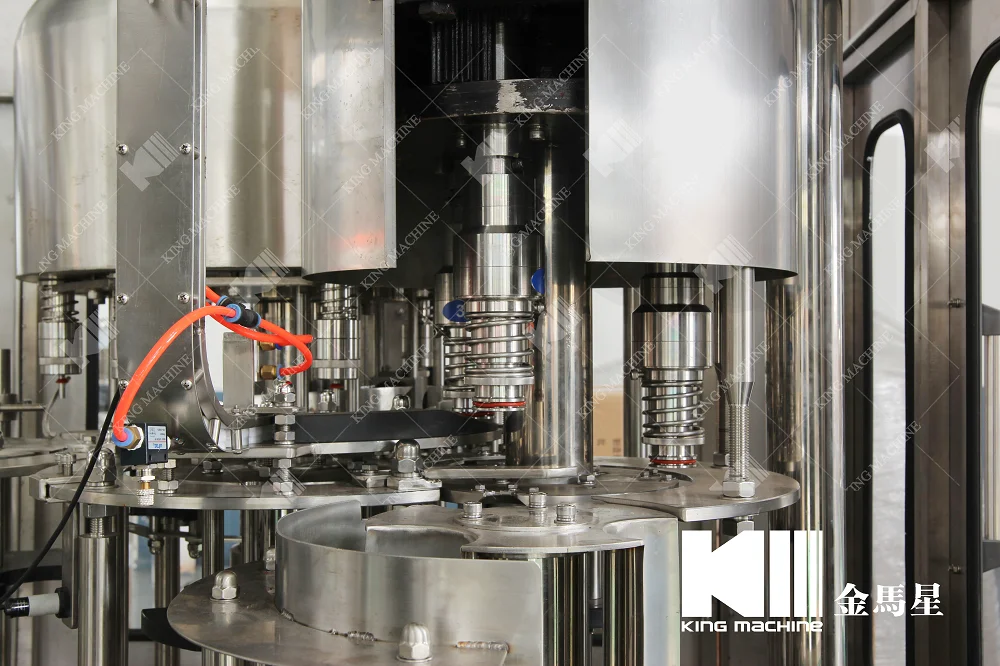

Capping heads.

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle

Main Features.

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.


2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..


3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.


4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.


5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.


6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Model
DCGF
8-8-3
DCGF
14-12-4
DCGF
18-18-6
DCGF
24-24-8
DCGF
32-32-10
DCGF
40-40-12
DCGF
50-50-15
DCGF
60-60-15
Capacity
0.5L/bottle/h
1500
2000-
3000
3000-5000
5000-7000
7000-10000
10000-15000
16000-20000
20000-
24000
Filling
precision
<= +5 mm (Liquid level)
Filling
pressure
<= 0.4 Mpa
PET Bottle
specification
Bottle Diameter 50-115 mm
Height 160-320 mm
Suitable
cap shape
Plastic Screw Cap or Crown Cap
Total power
3.6
4.4
5.2
6.2
6.2
7.5
11
15
Weight
<kg>
2000
2500
3500
4500
6000
7200
10000
11500
Auxiliary equipment

RO water treatment system.

•Stainless steel high pressure film shell
•All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
•Online type pressure auto self-protection device
•Online type electricity indicator (with stable compensation)
•System safe protecting and alarm system
•System frame

Blow molding system.

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Automatic labeling machine.

It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.

PE film packaging machine.

It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.

Certificate & Patent
About King Machine

<1> Standardized workshop of total 12,000 square meters.

Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.


<2>International certification, National Certificate of equipment verification, and more than 30 invention patents are done in King machine .
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.


<3>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.


<4>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.


<5>The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.


<6>Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

King Service

1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.

Packing & Delivery

Delivery.

Package Type : As usual, we adopt wooden case as package type. It’s suitable for long-distance transport. According to customers’ special demand, we could adopt sheet iron case and so on.

Transport : By sea. By train. By aircraft.
