Full Automatic Plastic Bottled Water Bottling Filling Machine

FOB Reference Price:Get Latest Price
US $17,500-19,000 / Set | 1 Set/Sets Of Full Automatic Plastic Bottle Water Bottling (Min. Order)
Supply Ability:
10 Set/Sets per Week Of 2015 New Design Full Automatic Plastic Bottle Water Bottling
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
can be made according to customer's requests
Power:
3KW
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
KING MACHINE
Model Number:
KM(CGF14-12-4)
Dimension(L*W*H):
2500*1880*2300mm
Weight:
3200KGS
Certification:
CE,ISO,SGS
After-sales Service Provided:
Engineers available to service machinery overseas
Machine Name:
Full Automatic Plastic Bottle Water Bottling Filling Machine
Rinsing Pump power:
0.37KW
Filling Pump power:
0.75KW
Cap unscrambler motor:
0.37KW
Capacity:
3000bph for 500ml
Suitable bottle size:
250ml-1500ml
Suitable bottle diameter:
50-90mm
Suitable bottle height:
150-310mm
Total Power:
4.49KW
Main electrical components:
Siemens Brand
Packaging & Delivery
Packaging Details
Standard Export Package for 2015 New Design Full Automatic Plastic Bottle Water Bottling Filling Machine
Delivery Time
30Days
Video Description
Product Description

This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

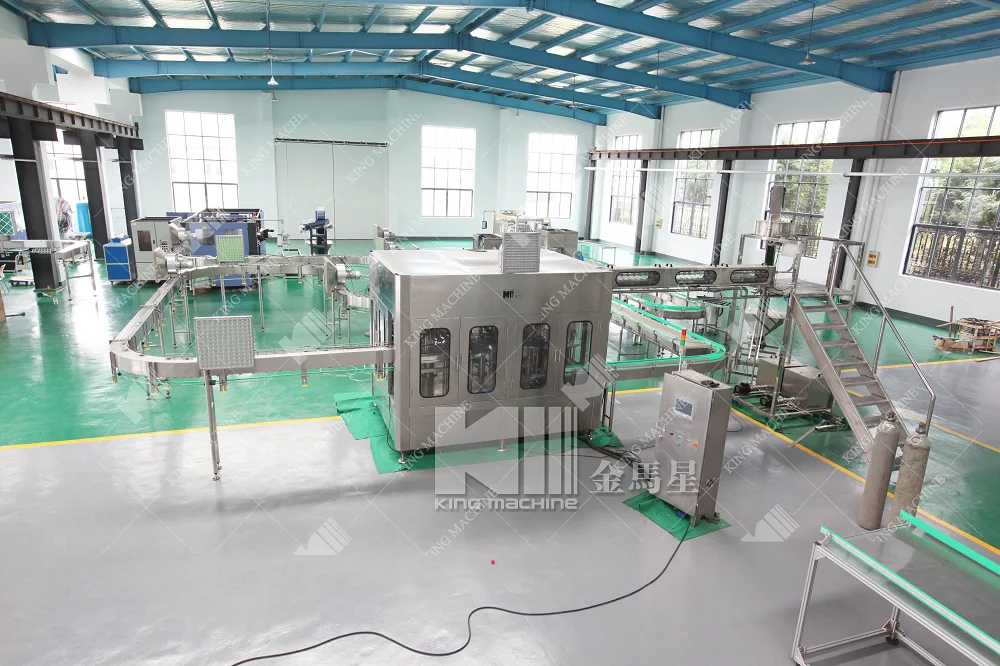

The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.

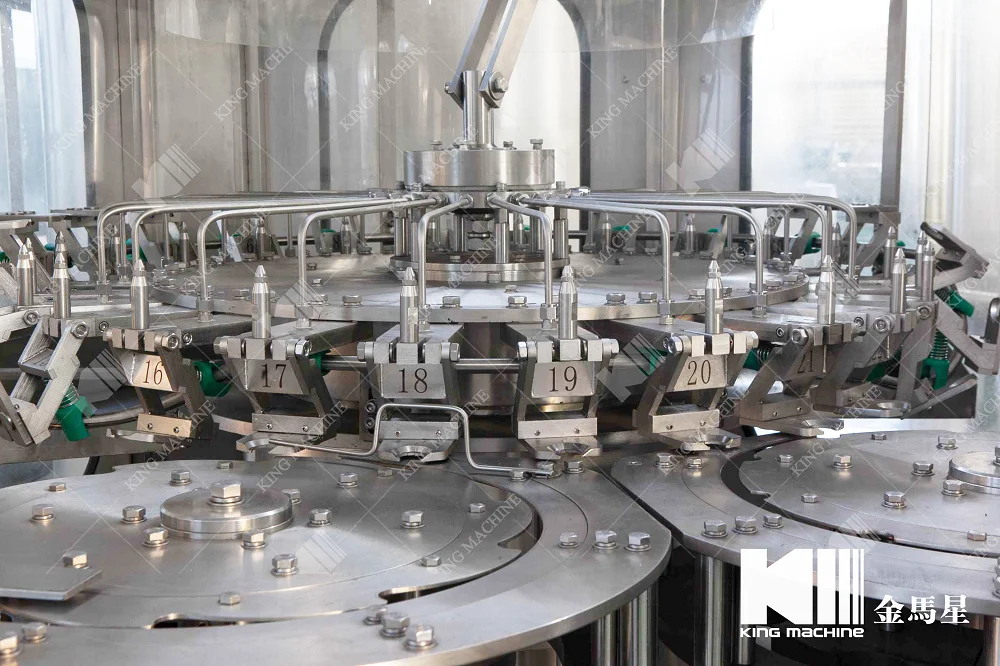

Washing heads.

<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump

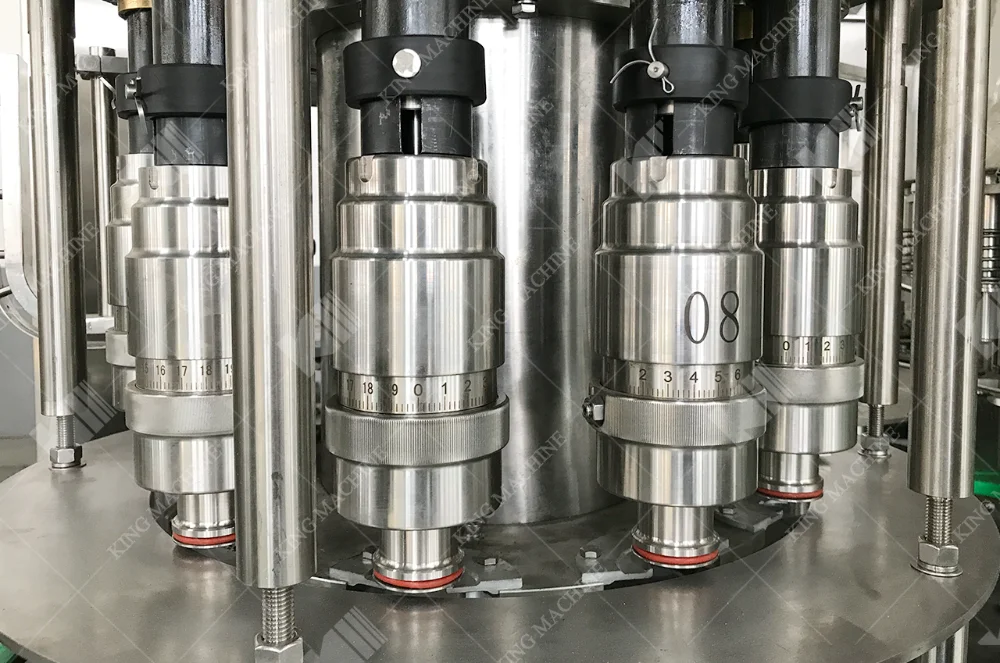

Filling heads.

<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump

Capping heads.

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle

Main Features.

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.


2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..


3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.


4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.


5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.


6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Model
CGF
8-8-3
CGF
12-12-4
CGF
16-16-5
CGF
18-18-6
CGF
24-24-8
CGF
32-32-10
CGF
40-40-12
CGF
50-50-12
CGF
60-60-15
Capacity
0.5L/bottle/h
2000
3000-4000
4000-6000
6000-8000
8000-12000
13000-15000
16000-18000
20000-24000
25000
Suitable
bottle
PET Circular or square
Bottle
diameter
50-115 mm
Bottle
height
160-320 mm
Compressed air pressure

0.3-0.7 Mpa
Washing
mdeium
Aseptic water
Washing
water's
pressure

>0.06Mpa   <=0.2Mpa
Total power
3
4.4
4.4
4.4
5.2
6.2
7.8
10
13
Weight
<kg>
3000
3200
4000
4500
6500
7500
8500
9000
9500
Auxiliary equipment

RO water treatment system.

•Stainless steel high pressure film shell
•All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
•Online type pressure auto self-protection device
•Online type electricity indicator (with stable compensation)
•System safe protecting and alarm system
•System frame

Blow molding system.

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Automatic labeling machine.

It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.

PE film packaging machine.

It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.

Certificates
About King Machine

<1> Standardized workshop of total 12,000 square meters.

Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.


<2>International certification, National Certificate of equipment verification, and more than 30 invention patents are done in King machine .
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.


<3>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.


<4>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.

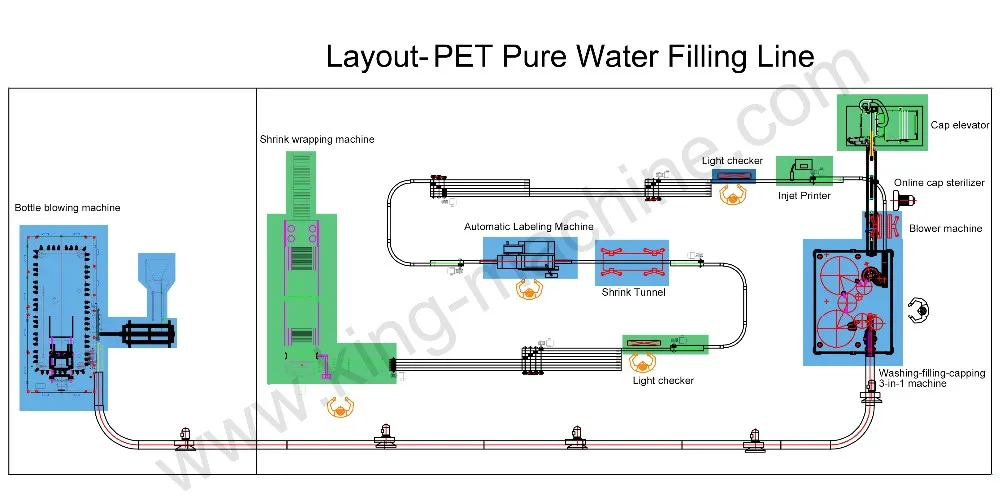

<5>The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.


<6>Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

King Service

1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.

4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.

After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.

Packing & Delivery

Delivery.

Package Type : As usual, we adopt wooden case as package type. It’s suitable for long-distance transport. According to customers’ special demand, we could adopt sheet iron case and so on.

Transport : By sea.

FAQ

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine


Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!


Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.


Q4: What's your guarantee or the warranty of the quality if we buy your machines?

A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
