Quick Details

  • Type: Filling Machine
  • Condition: New
  • Application: Beverage
  • Packaging Type: Bottles
  • Packaging Material: Plastic
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: can be made according to customer's requests
  • Power: 3KW
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: KING MACHINE
  • Model Number: KM(CGF14-12-4)
  • Dimension(L*W*H): 2500*1880*2300mm
  • Weight: 3200KGS
  • Certification: CE,ISO,SGS
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Machine Name: Automatic PET / Plastic Bottle Water Bottling Filling Machine Price
  • Rinsing Pump power: 0.37KW
  • Filling Pump power: 0.75KW
  • Cap unscrambler motor: 0.37KW
  • Capacity: 3000bph for 500ml Water Filling Machine
  • Suitable bottle size: 250ml-1500ml
  • Suitable bottle diameter: 50-90mm
  • Suitable bottle height: 150-310mm
  • Total Power: 4.49KW
  • Main electrical components: Siemens Brand

Packaging & Delivery

Packaging Details Standard Export Package for Full Automatic PET / Plastic Bottle Water Bottling Filling Machine Price
Delivery Time 25 days after payment

Full Automatic PET / Plastic Bottle Water Bottling Filling Machine Price



Water Treatment

According to the customer requirements and the source water quality, we adopt different equipment to produce pure water, mineral water,etc. The main equipments are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator,water tank,etc. The treatment capacity is 0.5-50 ton/hour. It can effectively get rid of muddy organic matter, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of microorganism and some of heavy metal ion in the water, reduce the hardness of the water to make all specifications of the water quality fully meet the state fresh water standard of fresh drink water.

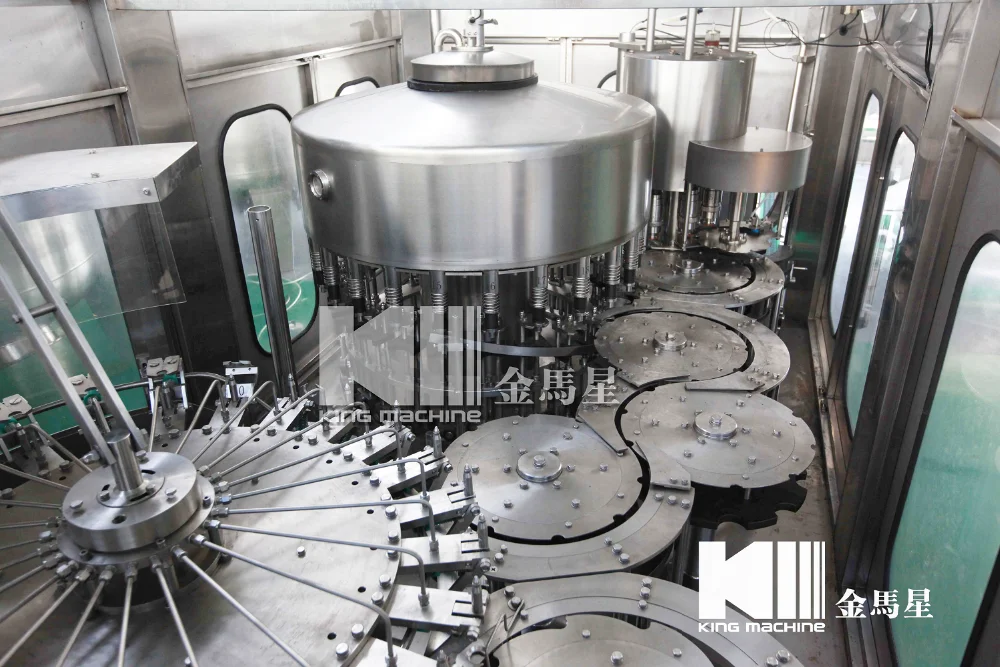

Washing, filling and capping 3-in-1 Machine

The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted.



Technical parameters

Model

Washing

heads

Filling

heads

Capping

heads

Weight

Overall dimension

(mm)

CGF14-12-4

14

12

4

3200kg

2500*1880*2300mm

CGF16-16-5

16

16

5

4000kg

2600*1900*2300mm

CGF18-18-6

18

18

6

4500kg

2800*2150*2300mm

CGF24-24-8

24

24

8

6500kg

3100*2450*2300mm

CGF32-32-10

32

32

10

7500kg

3680*2800*2500mm

CGF40-40-12

40

40

12

8500kg

4100*2800*2300 mm

CGF50-50-12

50

50

12

9000kg

4500*3300*2350 mm

You can also customize the size you need

Product Detail

 This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

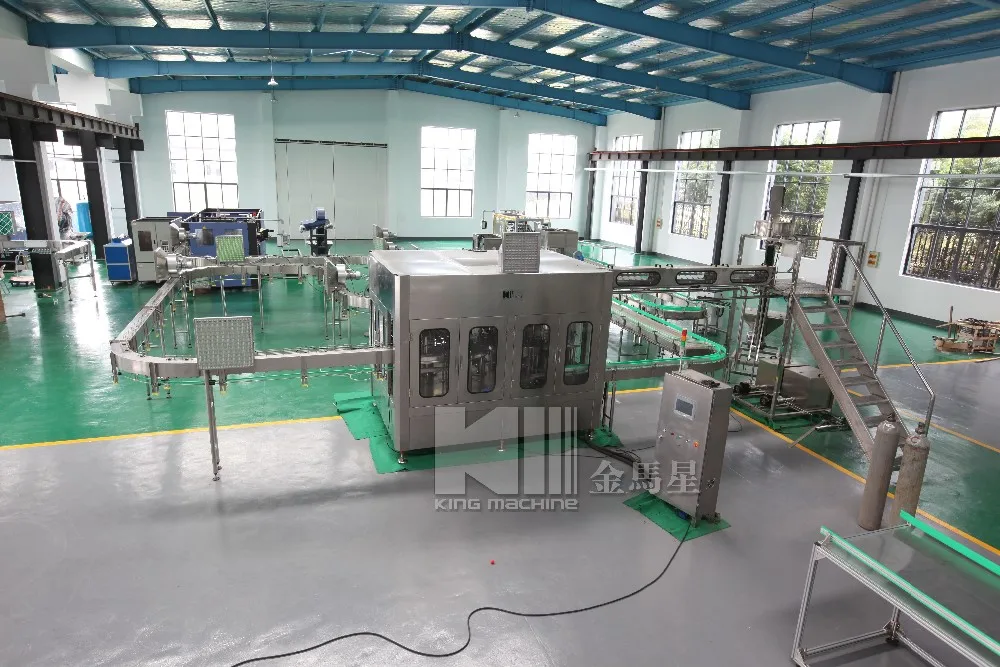

The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.



Flow Chart



Flow chart (pure water filling machine):
A)Bottle production line PET Resin --Injection moulding machine -Botlte blowing machine --PET bottle
B)Water treatment system Raw water--Pump--Silica sand filter--Carbon filter--Water softner--Reverse Osmosis -UV sterilizer-Ozone generator--Finished water tank
C)Filling&Packing part Bottle unscrambler--Air conveyor--Washing,filling,capping 3in1 machine--Light checker--Blow dryer--Dater printer--Lableing machine --Packing machine -Stock



Product Features

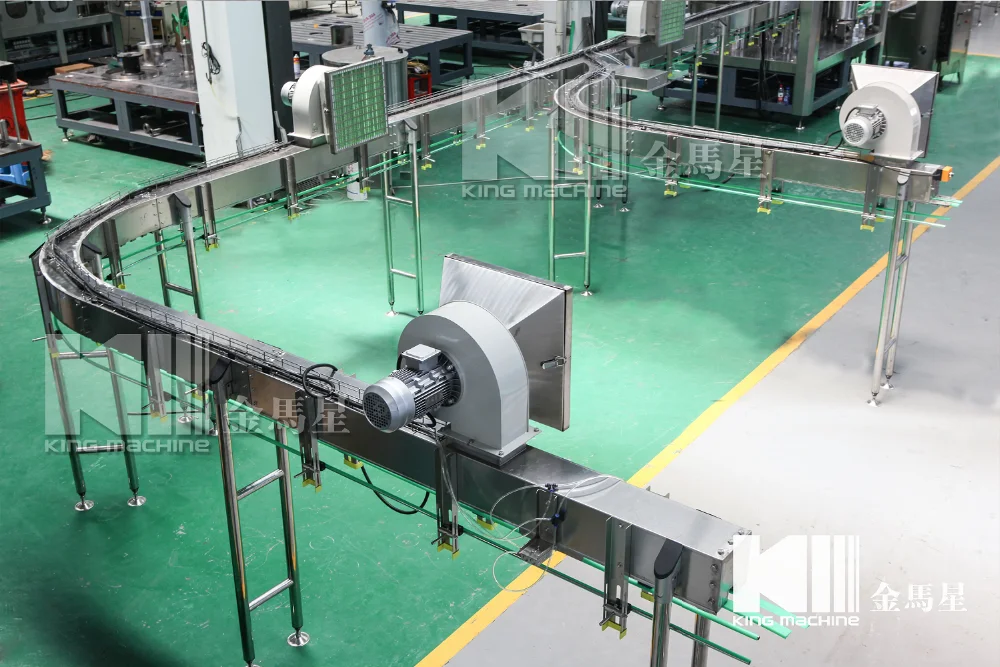

1.Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

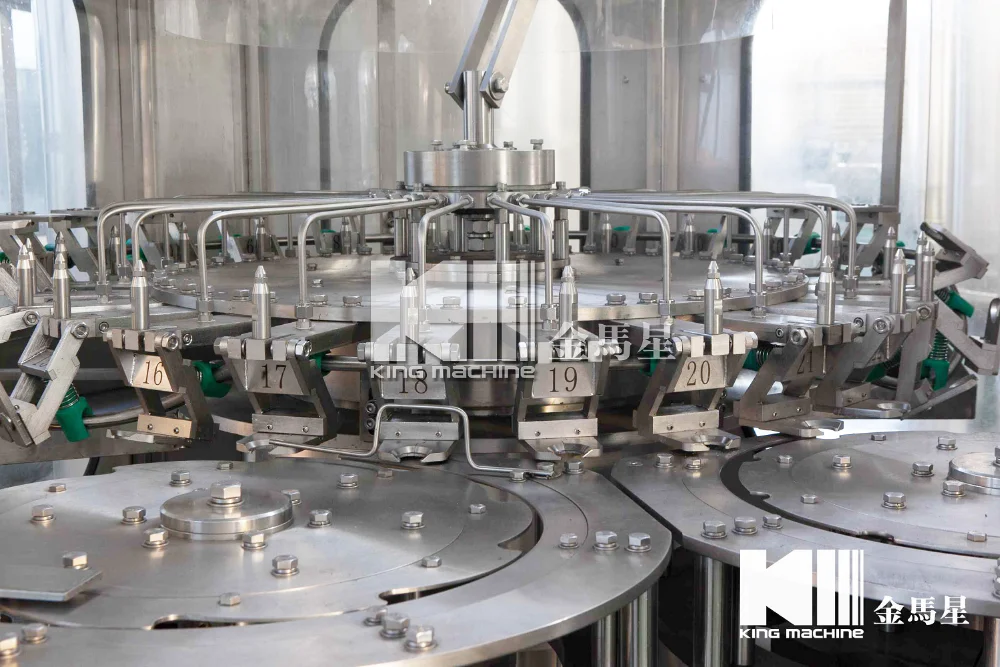

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

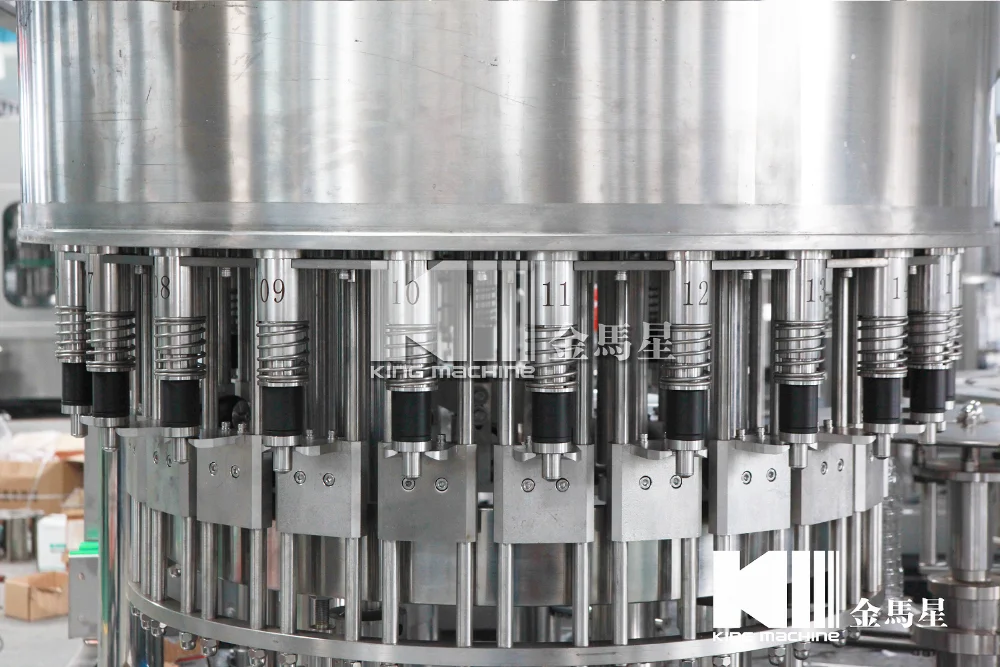

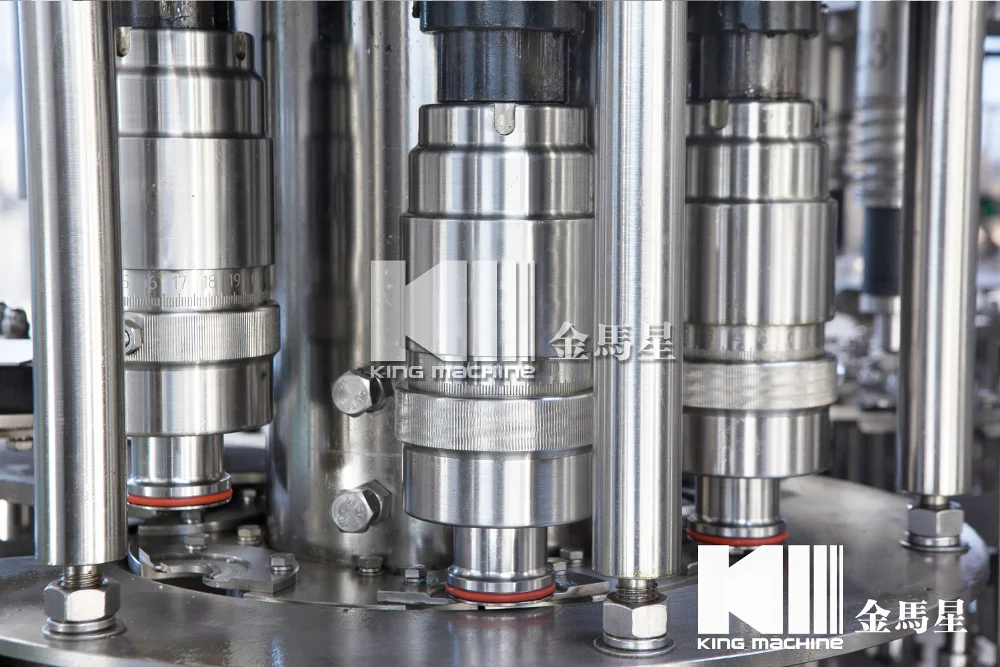

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, Siemens.

Certifications



Exhibition Show



company information

Zhangjiagang King Machine Co., Ltd,is a direct manufacturer and exporter specializing in water treatment plants, beverage filling machine, packing machine, bottle blowing machine, injection   moulding machine and spare parts of filling line.

Our factory was established in the year of 1995, with the long history of accumulated experience in filling machine industry in south Jiangsu. There are many development engineer of filling machine in our company. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry.

King Machine cooperated with many customers in recent years, we win the trust of customers from our high-quality products. And we are looking forward to the future cooperation with you if our products can impress you deeply.

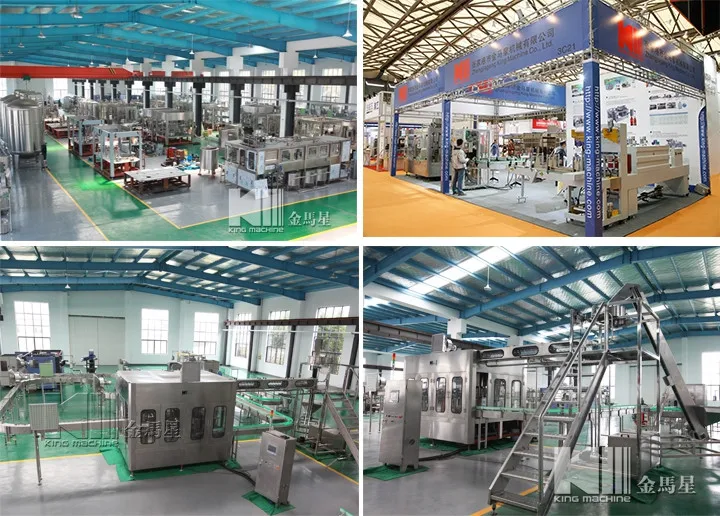

Our factory



Our production workshop



Our workers are working

Packaging & Shipping



Our Services

Installation service

When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.



The sample service

1.We can send you the video of the running machine.

2.You are welcome to come to visit our factory,and see the machine running.



Customized service

We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.



After-sales service

1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

4.We provide one year warranty

5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).

7 .12 Months guarantee and life-long technical support.

8.Your business relationship with us will be confidential to any third party.

9. Good after-sale service offered, please get back to us if you got any questions.



Quality Control

We have the single quality department,that make sure the material of the raw materials is  good,and ensure the machine running smoothly.





 If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !



Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.



Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.



Q4: How can I install my machine when it arrives?

A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.



Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
