Automatic 5 gallon liquid filling machine

FOB Reference Price:Get Latest Price
US $4,000-60,000 / Set | 1 Set/Sets Automatic 5 gallon liquid filling machine (Min. Order)
Supply Ability:
20 Set/Sets per Month Automatic 5 gallon liquid filling machine
Port:
Shanghai port
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Beverage
Packaging Type:
Barrel
Packaging Material:
Plastic, Wood
Automatic Grade:
Automatic
Driven Type:
Mechanical
Voltage:
380V/50HZ
Power:
According to customer's requests
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
KM
Model Number:
QGF
Dimension(L*W*H):
According to 5 gallon automatic water blow fill seal machine / line
Weight:
680-4500kg
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Automatic 5 gallon liquid filling machine
machine colour:
silver
Barrel size:
270*490
material:
stainless steel 304/316
control:
PLC control
main product:
water
power:
1.38-13.5kw
warranty:
1 year
certificate:
CE ISO
Packaging & Delivery
Packaging Details
Wooden case for Automatic 5 gallon liquid filling machine.
Delivery Time
30days
King Machine Factory
Product Description

Product Application.

1/Auto Bottle Uploader
2/ Decapping Machine
3/ Outside Brusher
4/ Inside Brusher
5/Rinsing Filling Capping Machine <with Cap Elevator and Sterilization System>
6/ Light Inspector+Cap Seal Shrink Machine
7/ Finished Products

Containers and Specifications
Project Name:
Full Automatic Complete 60-1200BPH 3-5 Gallon Barrel Filling Production Line
Mineral Water /
Pure Water
Material
Shape
Filling volume
Filling Type
Conveyor Mode
PC / PET
Round or Square
3 - 5 Gallon
Gravity filling
Normal temperature
Conveyor belt
Adjustable Specifications
of
Bottle Type
Size of Barrel : ф276×490mm
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Container Label
Sticker Label / Shrink Wrap Label / Prinetr Label
User Ambient Conditions
Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification
Voltage:380V±5%, 3phase; Frequency:50HZ±1%

Main Features.

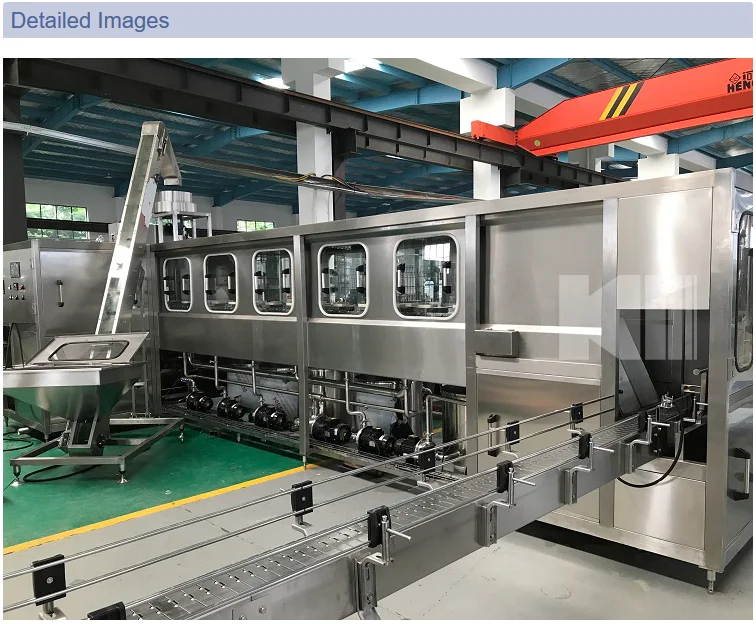

QGF type barreled water producing line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.

Outside Wshing Machine.

Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.

Main Machine Features.

1/Shape structure adopted concave and convex shape,
perfect appearance also reduces the leakage.

2/The thickness of the stainless steel plate which used for 600bph is 3mm.

3/Tank and the heating pipe in tank are removable which become more clean sanitation.

Filling Part Features.

1/Uploading and dropping barrels changed from 45 degree to translatory which is more stable.

2/Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.

Capping Parts.

1/Liquid level difference is controlled in 1cm.
2/Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
3/Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.

Flat Conveyor.

The chain board on conveyor is made with stainless steel. The appearance of foot stand is perfect, and the height can be adjusted.

Cap Sterilization System.

Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.

Certificate & Patent
About King Machine

<1> Standardized workshop of total 12,000 square meters.

Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.


<2>International certification, National Certificate of equipment verification, and more than 30 invention patents are done in King machine .
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.


<3>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.


<4>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.


<5>The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.


<6>Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

King Service

1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.

Packing & Delivery

Delivery.

Package Type : As usual, we adopt wooden case as package type. It’s suitable for long-distance transport. According to customers’ special demand, we could adopt sheet iron case and so on.

Transport : By sea. By train. By aircraft.
