Auto plastic oil bottle bottling packing machine

FOB Reference Price:Get Latest Price
US $20,000-80,000 / Set | 1 Set/Sets Auto plastic oil bottle packing machine (Min. Order)
Supply Ability:
50 Set/Sets per Month Auto plastic oil bottle packing machine
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Beverage, Food
Packaging Type:
Bottles
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Mechanical
Voltage:
customzed
Power:
by model, 1-1.5kw
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
KING MACHINE
Model Number:
XFH
Dimension(L*W*H):
by model
Weight:
by model
Certification:
CE, ISO, SGS
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Auto plastic oil bottle bottling packing machine
Processing:
Filling Machine
Processing Types:
oil
Warranty:
12months
Number of heads:
4-12
Filling volume:
200-6000ml
Gas pressure:
0.55-0.8mpa
key word:
oil bottle bottling machine
Packaging & Delivery
Packaging Details
wooden box of Auto plastic oil bottle packing machine.
Delivery Time
within 30 days
King Machine Factory
Product Description

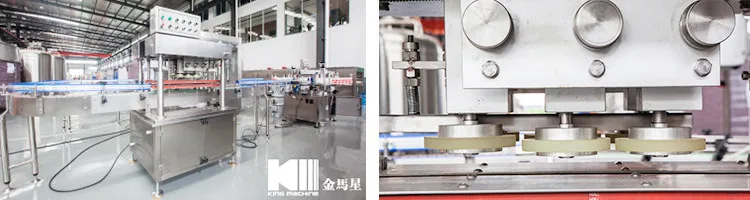

Edible Oil .
Suitable :
Edible Oil<Sesame , Olive , Peanut/Blend .etc>
Lubricating Oil +Special Solvents .etc
Bottle Material :
PET / PE / Glass / Metal
Bottle Type : Round / Square / Unique
Cap : Press cap
Label : Sticker Label / Shrink Label
Detergents.
Suitable :
detergent,shampoo,dishwasher,liquid soap etc
Bottle Material : PE Bottle
Bottle Type : Round / Square / Unique
Cap : Screw cap
Label : Sticker Label
Corrosive Liquid.
Suitable :
bleach,clorox, toilet cleaner .
Bottle Material : PP Bottle
Bottle Type : Round / Square / Unique
Cap : Screw cap
Label : Sticker Label

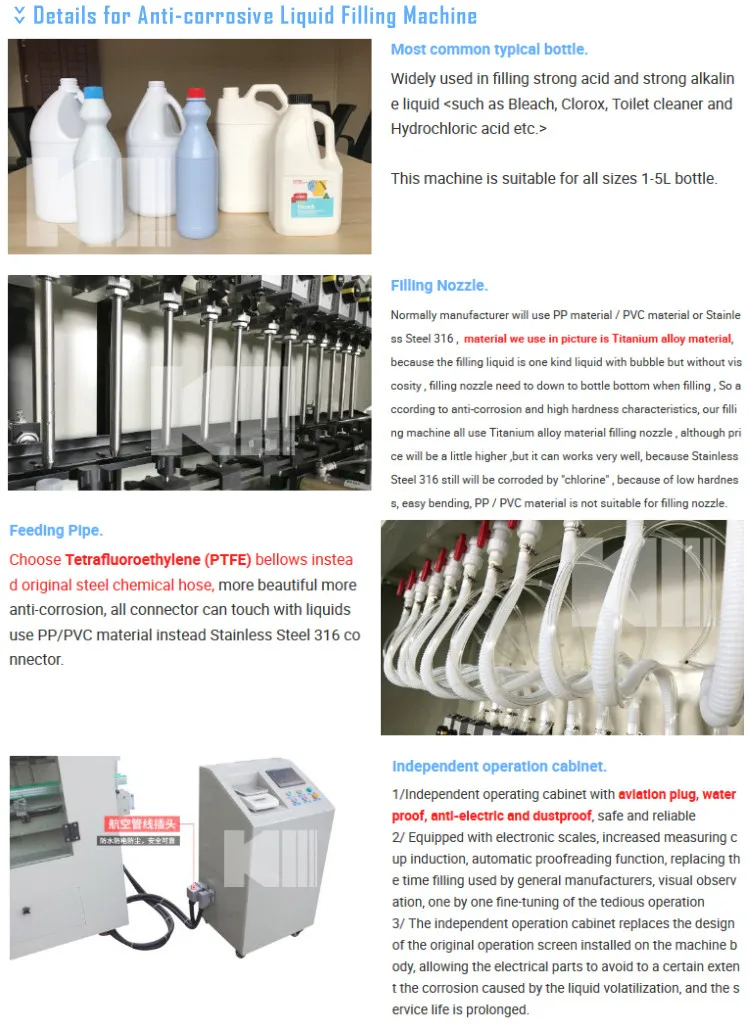

Anti-corrosive Filling Machine body is made by PP material, customized machine for liquid materials containing "chlorine", because "chlorine" will react with stainless steel. Why we choose PP material instead of PVC material, because PP material enough hard in making machine frame, PVC as anticorrosive material, is one kind soft material, can’t choose as machine frame material.

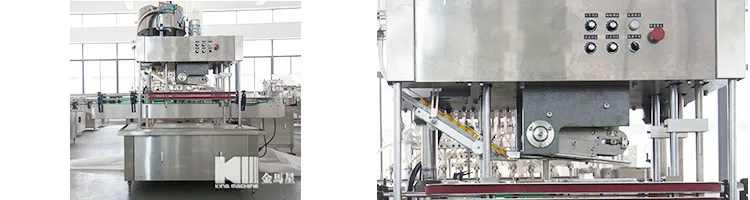

Cap Pressing Machine.

Bottle caps automatically goes into bottle caps slot by adopting cap-pulling device. In order to the machine can fit on capping on various bottle volumes, and considering multi-usages in this machine, so it is adjustable on machine design.

It has more advantages on well-structure, good outlook, small volume, low weight, wide using range, easy dismissible and maintenance, and low quotiety of bottle broken.

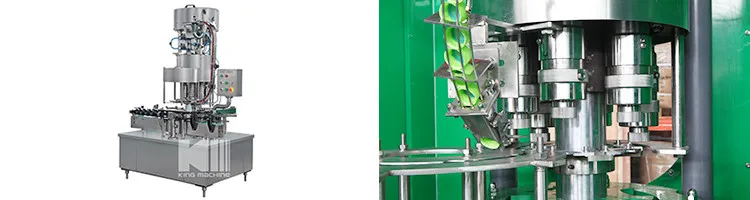

Twisting Capping Machine.

This machine is suitable for glass bottle and plastic bottle ,screw/thread caps twisting ,it can used in a wide range of bottles(with differen top diameter ), by adjust the machines but not change parts. Also, the speed is quicker than disc capper.

Advantage : for different size bottles and caps, it do not need to change any part. The machine can be adjust from right & left, up and down, very convenience.

Screw Capping Machine.

Automatic bottle screw capping machine is our new developed products based on many inland craft brothers’ working experience and our researches. It is suitable for all different size of PET lids with screw thread.

It can compose with rinsing machine, filling machine to become into one production line. This machine has advantages on perfect performance, easy operation, safe work, tightened screw, well-organized, convenient maintenance and long-life use. This machine is ideal for beverage productions.

PET Bottle Making Machine.

1/Stable performance with advanced PLC.

2/No contamination and low noise with the air cylinder to drive the action instead of the oil pump.

3/Strong clamping force with high pressure lock the mold.

4/Two ways of operating: automatic and manual.

5/Safe,reliable and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
6/Low cost,high efficiency,easy operation,easy maintenance,etc,with automatic technological process.

PE / PP Bottle Making Machine.

1/Extruding system:Various screw design for high efficiency of mixing and elasticizing the quality.
2/Clamping device:Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well.

3/Hydraulic pattern and pneumatic system:adopt the oil circulation system from America Vickers or Japan YUKEN makes the oil circulation with faster speed, stability in reducing speed, low noise, energy conservation and long duration.

Automatic Double Side labeling machine.

1/Adopt mature PLC control technology, make the machine stable and high-speed
2/Can be suitable for square /round/oval flat bottles at the same time
3/Use touch screen control system, make operation simple, practical and efficient
4/Screw adjust the suppression mechanism, high accuracy
5/Tranparent label sensor is for optional
6/Can be customized according to your requirement

Containers and Specifications
Project Name:
Full-automatic Viscous Liquid Filling Machine

Oil and Fat Products /
Daily Chemicals /
Corrosive Liquid
Bottle Material
Bottle Shape
Filling Range
Capacity
Filling level
(mm)
PET / PP / PE / Glass / Metal
Round / Square
/ Unique Shape
200ml-30L
As request
Distance from
bottle neck
According request

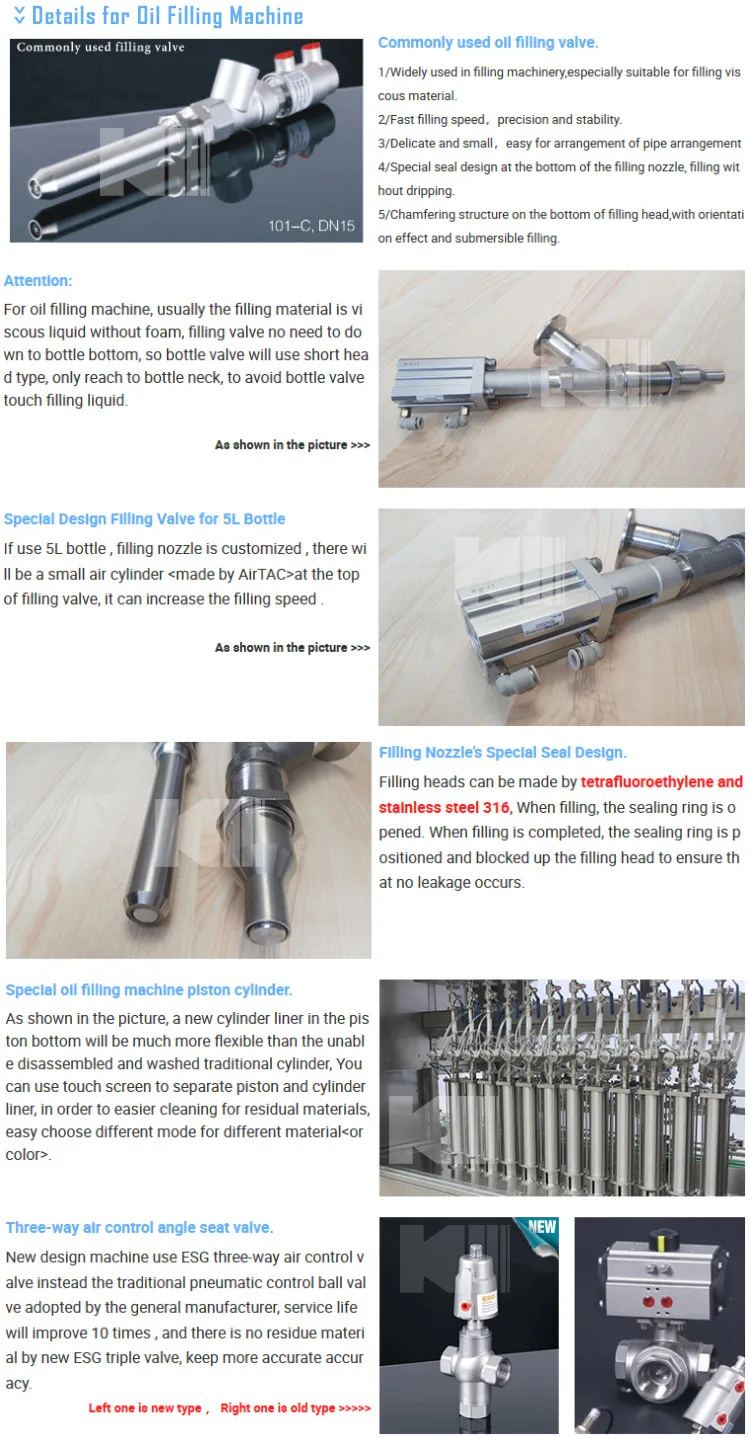

Filling Valve
Each filling valve is controled by servo motor ,realizing segmented high-and low-speed control ; vacuum resorption devices without leakage.
Cap closing
method
applicability for both crowning and capping, mechanical instant sealing or servo­controlled sealing
Bottle components
rapid replacement without tools, such as star wheels for bottle infeed and outfeed, and bottleneck clamps
Filling precision
limit deviation: ±2-3g standard deviation: 1.5
User Ambient Conditions
Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification
Voltage:380V±5%, 3phase; Frequency:50HZ±1%
Certificate & Patent
About King Machine

<1> Standardized workshop of total 12,000 square meters.

Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.


<2>International certification, National Certificate of equipment verification, and more than 30 invention patents are done in King machine .
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.


<3>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.


<4>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.


<5>The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.


<6>Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

King Service

1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.

Packing & Delivery

Delivery.

Package Type : As usual, we adopt wooden case as package type. It’s suitable for long-distance transport. According to customers’ special demand, we could adopt sheet iron case and so on.

Transport : By sea. By train. By aircraft.
